PRODUCT MODULE · 01

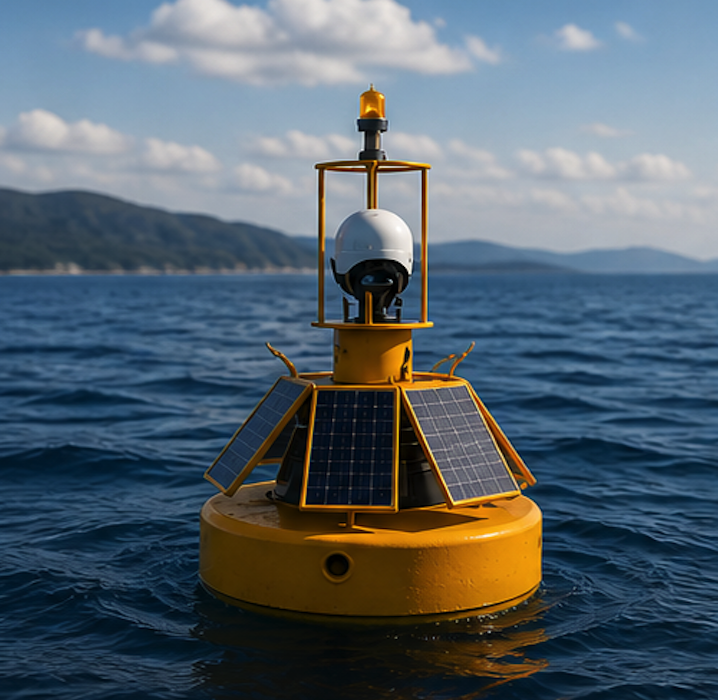

COASTGUARD X Autonomous Sentinel Buoy Platform

A modular self-sustaining maritime surveillance node. Surface radar, EO/IR, underwater acoustic sensing, AI threat analysis, encrypted mesh and autonomous power — engineered for LNG terminals, offshore platforms, ports, coastal borders and exclusion zones.

INSPECTION INTERFACE · 12 SUBSYSTEMS · 5 GROUPS

BEACON · MAST · OPTICS · ANTENNAS

· BEACON · MAST · OPTICS · ANTENNAS

· POWER · ENVIRONMENT

· AI · COMMS · INTEGRITY

· STRUCTURE · BATTERY

· SUBSURFACE · MOORING

SECTION · 02

Technical specification

Platform structure & primary sensor suite

Platform structure

Type: Autonomous Smart Surveillance Buoy
Diameter: 1.2 / 1.8 / 2.5 / 3.0 m
Float: UV-stabilised HDPE
Frame: S235 galvanised steel
Frame upgrade: SS316 marine stainless
Mast: Marine-grade aluminium
Ballast: Removable cast iron
Protection: IP68
Mooring: Fixed / semi-fixed / dynamic
Lifetime: 10–15 years
Compliance: IALA marine colour
Materials: Recyclable, heavy-metal-free

Primary sensor suite

01Surface surveillance radar
02EO/IR multispectral system
03Underwater detection suite
04AIS receiver / transponder
05Passive RF detection
06Hydrophone array
07Environmental package
08Geolocation + anti-tamper
09Motion & stability monitoring

SECTION · 03

Sensor configurator

Select modules — endurance, bandwidth and mission suitability update live

SURFACE

VISUAL

SUBSURFACE

AIR / RF

ENVIRONMENTAL

COMMUNICATIONS

POWER

NON-LETHAL RESPONSE

SECTION · 04

Buoy variants

Five purpose-built configurations

VARIANT · COASTGUARD X-B2

LNG / Energy Buoy

LNG · oil & gas terminals · pipelines

Exclusion-zone monitoring, diver/UUV detection, hazard sensing.

SENSORS

EO/IR PTZ · Hydrophone array · Active sonar · Hydrocarbon · Tamper

COMMS

Mesh + SATCOM

POWER

Solar + 8 kWh

SPACING

1.0–1.8 km

LIMITATIONS · Higher power draw; service interval 9 mo.

SECTION · 05

Deployment scenarios

Logical placement based on sensor range, sea state and overlap

DEPLOYMENT · LNG

15 BUOYS · MESH ACTIVE

Mix

B2 × 6 + B5 × 4 + B4 × 1

Mean spacing

1.2 km

Overlap

×1.6

Exclusion-zone perimeter with subsurface pipeline focus.

SECTION · 06

Detection logic simulation

Realistic maritime timing · multi-buoy hand-off · AI correlation

SIM · BUOY HAND-OFF

T+00s

0.0s / 60

SECTION · 07

Command Center integration

What every buoy streams to the M-C2

Telemetry & data feeds

Radar tracks● LIVE
EO / IR streams (RTSP)● LIVE
Sonar & acoustic spectrograms● LIVE
AIS correlation● LIVE
Environmental telemetry● LIVE
Battery & power status● LIVE
Tamper alerts● LIVE
Mesh comms health● LIVE
AI classifications● LIVE
Incident alerts● LIVE

Live feed preview

EO · BUOY-21● REC

03:24:18Z · CONF 84%

IR · BUOY-21● REC

03:24:18Z · CONF 79%

ACOUSTIC · BUOY-21● REC

2.1 kHz · diver pattern

SoC ········· 87%

SOLAR ······ 38W

DRAW ······· 22W

MESH ······· 4/4

SEA STATE ·· 3

STATUS ····· NOMINAL

HEALTH · BUOY-21● REC

BAT 87% · MESH 4/4

Source

BUOY-21

Signal

−68 dBm

Recording

● ON

Confidence

84%

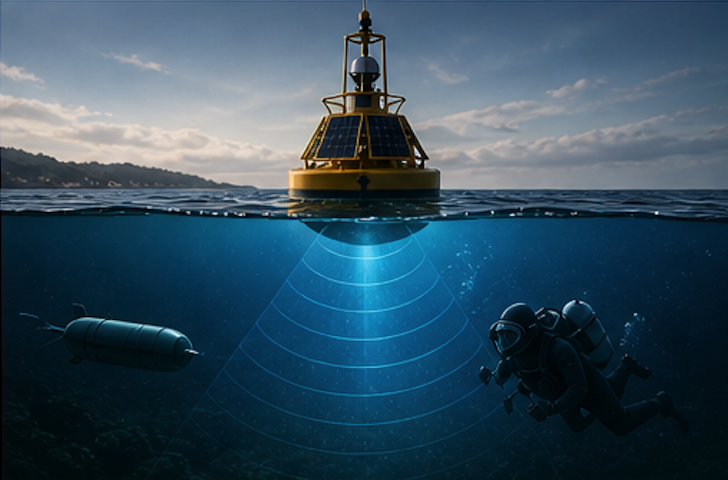

Subsurface picture · diver / UUV detection

Doctrine note

A COASTGUARD X buoy is not a floating object. It is a modular autonomous maritime sensor node connected to a wider AI-assisted C4ISR ecosystem. Its value is in the network: cross-buoy correlation, mesh resilience, and operator-validated escalation to UAV ISR.

NETWORK PRINCIPLE · Five buoys, one mesh. Ten buoys, one picture. The system gains capability with every node.
